London: St Johns Wood King Post Wall
Challenge

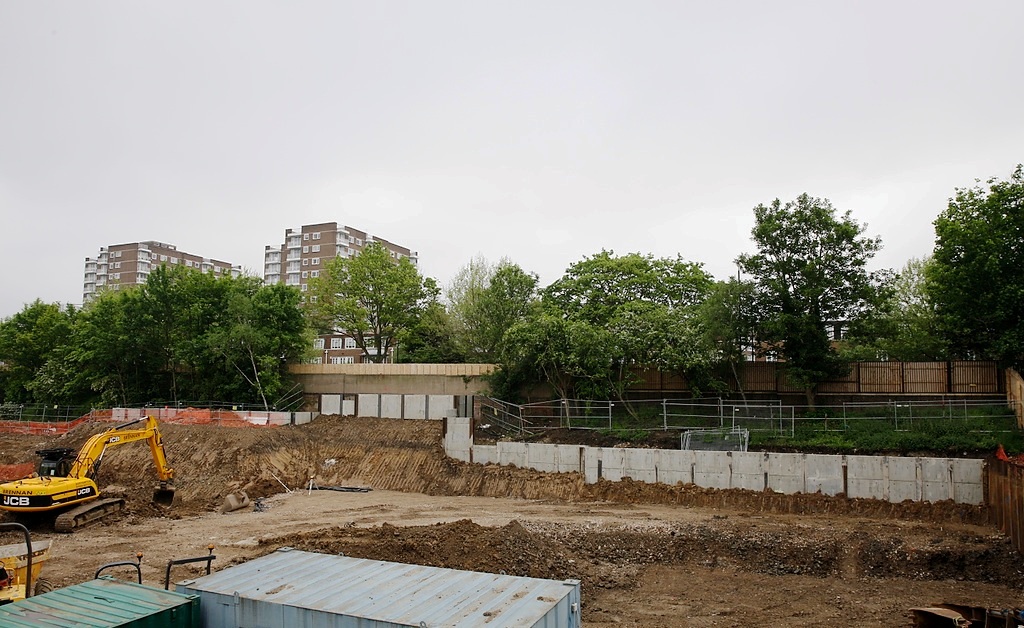

DAWSON-WAM was contracted by Brennan B&CE and Bouygues UK to design and construct a king post retaining wall for a new education facility in North London. The steeply sloping boundary of the site was formed of generally stiff clays that got stiffer with depth.
Solution

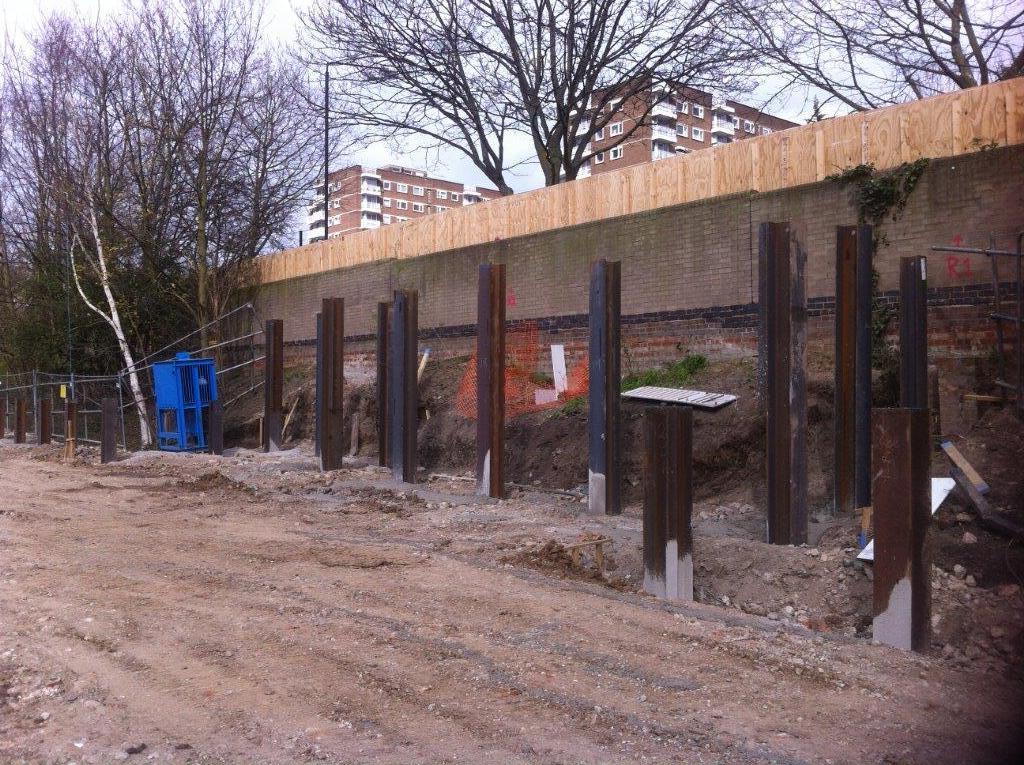

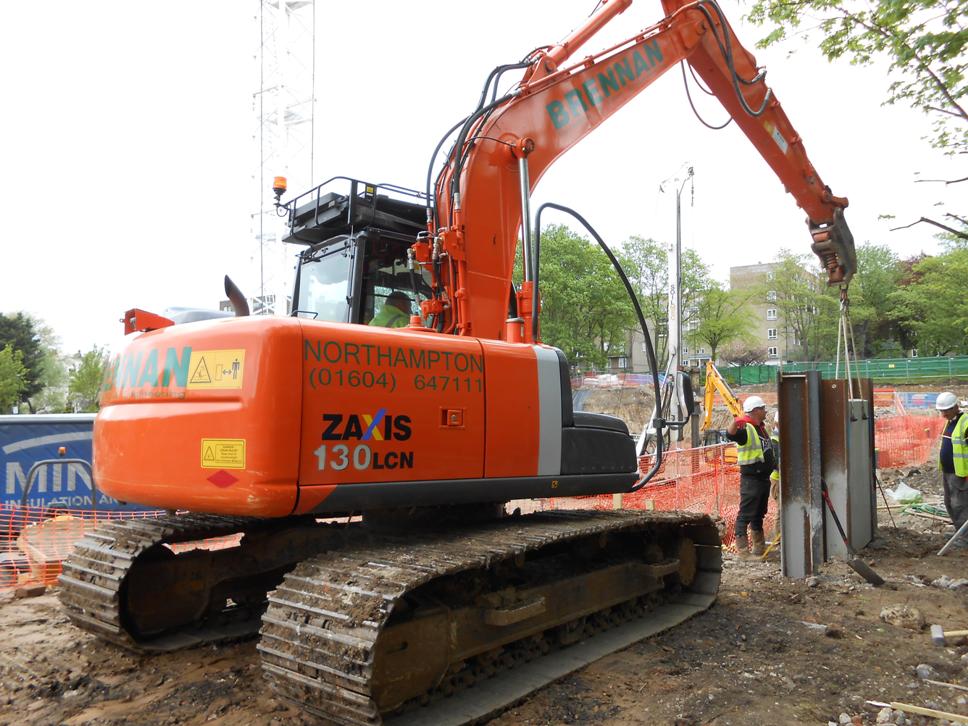

The king post wall consisted of steel column sections installed within a 450mm diameter concrete pile. Piles were installed using DAWSON-WAM’s Cased CFA to depths of up to 11m.
Result

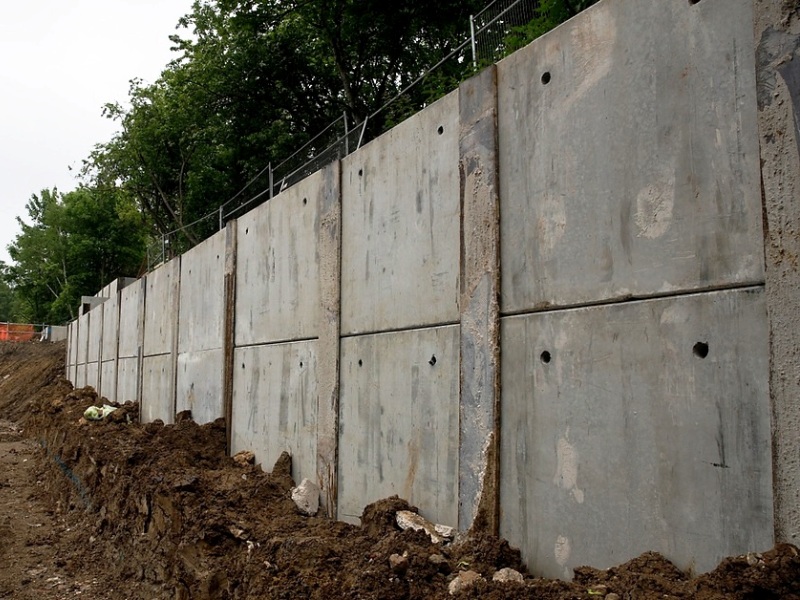

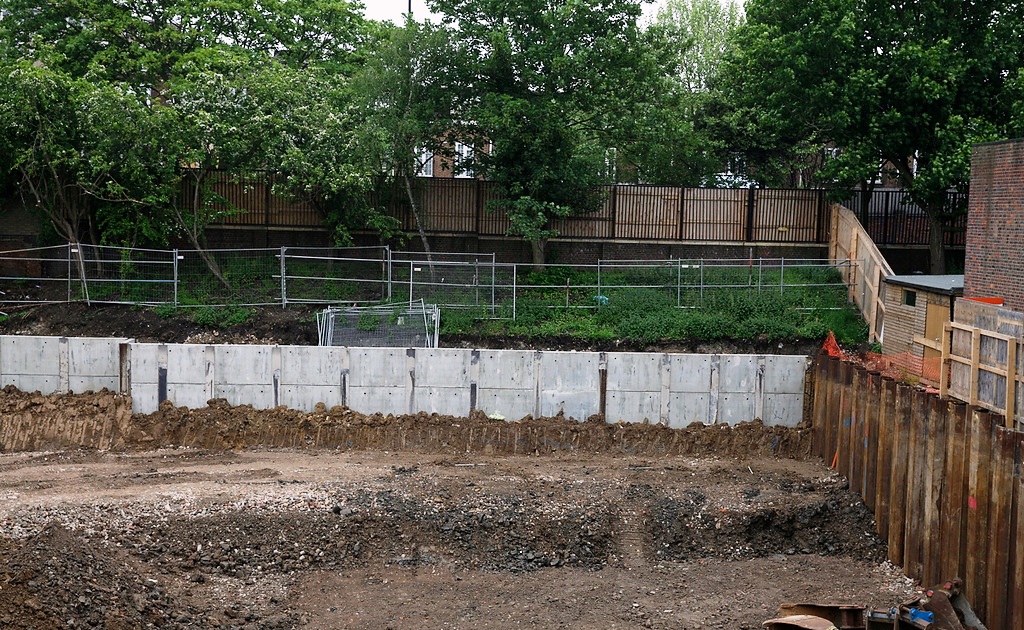

Fabrication of corners and junctions to the king posts was completed off-site to minimise on site hot works and precast concrete panels were manufactured off site to exact dimensions to avoid cutting on site.
Client
Brennan Building & Civil Engineering
Location
St Johns Wood, London
Design Engineer
Byrne Looby
Main Contractor
Bouygues UK
