Northern Ireland: Castor Bay to Dungannon Strategic Trunk Main

• 52km STM; Design and Build project from Bleary in County Down to Altmore in County Tyrone:

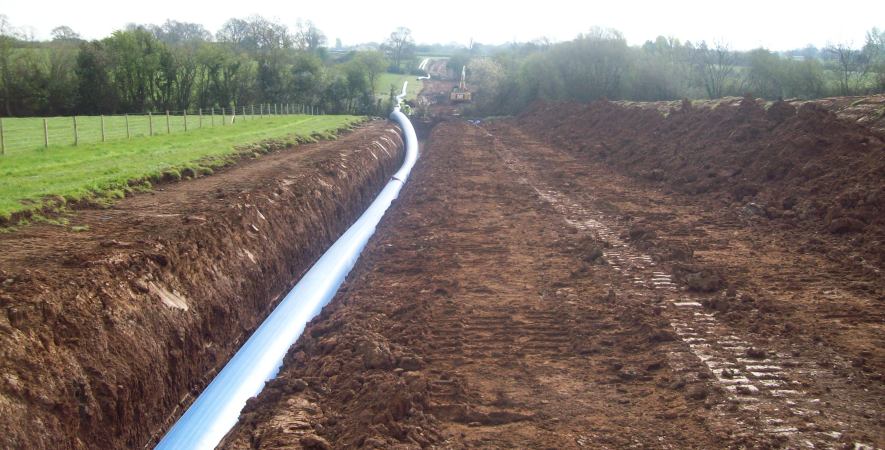

• 27.3km of 710 and 630mm OD HPPE pipes from Ballydougan Service Reservoir to Moy Water Pumping Station.
• 13.8km 450mm Ductile Iron pipes from Moy Water Pumping Station to Carland Service Reservoir.

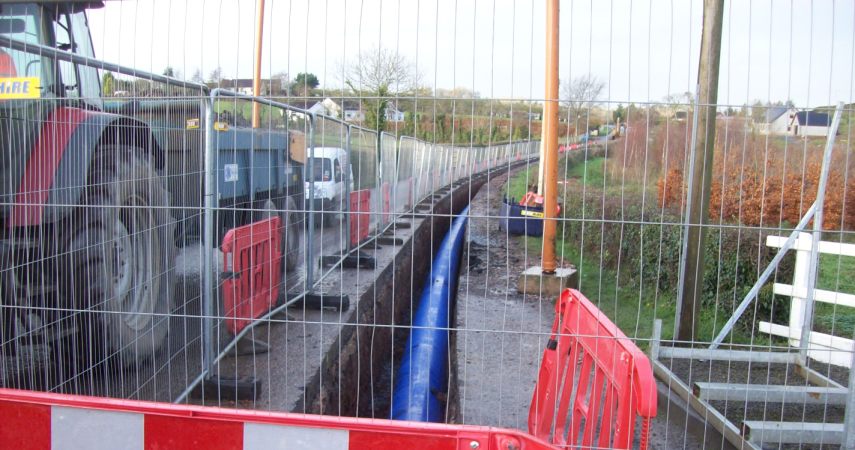

• 10.9km of 400mmOD HPPE, in roads & fields, from Carland Service Reservoir; tying into Altmore Trunk Main.

All three sections were cross country and included extensive road sections from A Class to country roads. A large number of road crossings populated the in fields sections.

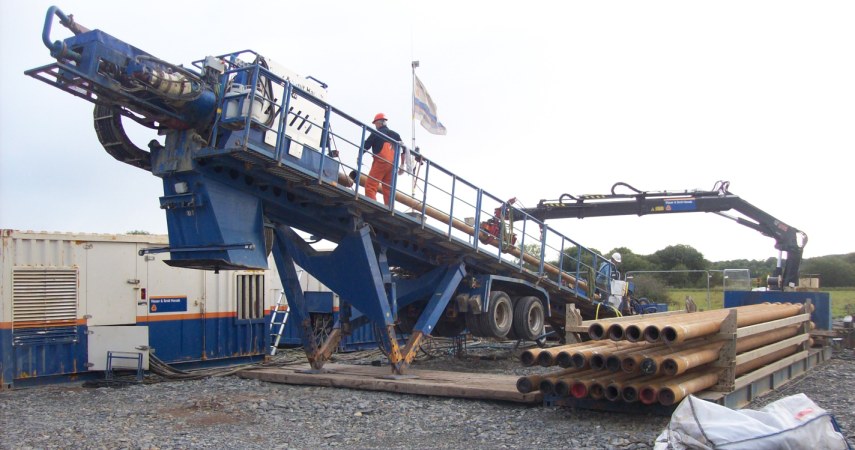

Due to extensive environmental restrictions and planning constraints a 1km single shot HDD crossing of the Bann and Cusher Rivers, Newry Canal and the main Belfast to Dublin railway line was required. Twin 710 OD HPPE (626mm Internal Diameter) pipes were designed to meet flow and redundancy requirements. This 1km single shot HDD crossing was over 23m deep and the longest in Ireland.

HDD crossings also included the Blackwater River with Twin 630 OD HPPE pipes and the M1 Motorway with Twin 560 OD HPPE pipes. Pipe Jacking across major arterial routes such as the Moy to Armagh Road was also required.

• Integrated Design, Construction, Testing & Commissioning inc Innovation/Teamworking
• Health and Safety Management inc Principal Contractor Role
• Workshops inc HAZOPS/HAZCON
• Project Management
• Customer Care Plan Development and Implementation
• Design Management inc Hydraulic Aquis Model and DAM process
• Risk, Value Engineering and Cost Management
• Stakeholder and Supply Chain Management
• Adding Value to NI Water
• Testing and Commissioning

Scope also included;

• New Moy 30Ml/d Water Pumping Station
• New 6Ml Carland Service Reservoir and 8Ml/d Water Pumping Station
• New control buildings
